Stainless Steel Water Storage Tank

FOB Reference Price:Get Latest Price
$735.00 - $2,941.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
JC092004
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops
Condition:
New
Capacity:
50-10000L, 1BBL-1000BBL
Place of Origin:
Jiangsu, China
Brand Name:
TONX
Dimension(L*W*H):
Customized
Weight:
Customized
Certification:
ISO 9001:2008
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Material:
Stainless steel 304/ 316L
Color Available:
Mirro SUS
Supply Ability
Supply Ability:
10000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Option 1: When Delivered by LCL (Less Container Loading), the tank will be covered by Pearl Wool, then Packed in Plywood case.
Option 2: When Loaded in Whole Container, The tank will be covered by Pearl Wool, Lay down & fixed on a Iron frame, finally the whole tank will be fixed in the container.
Port
Shanghai Port/ Ningbo Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Contact Us
Product Description

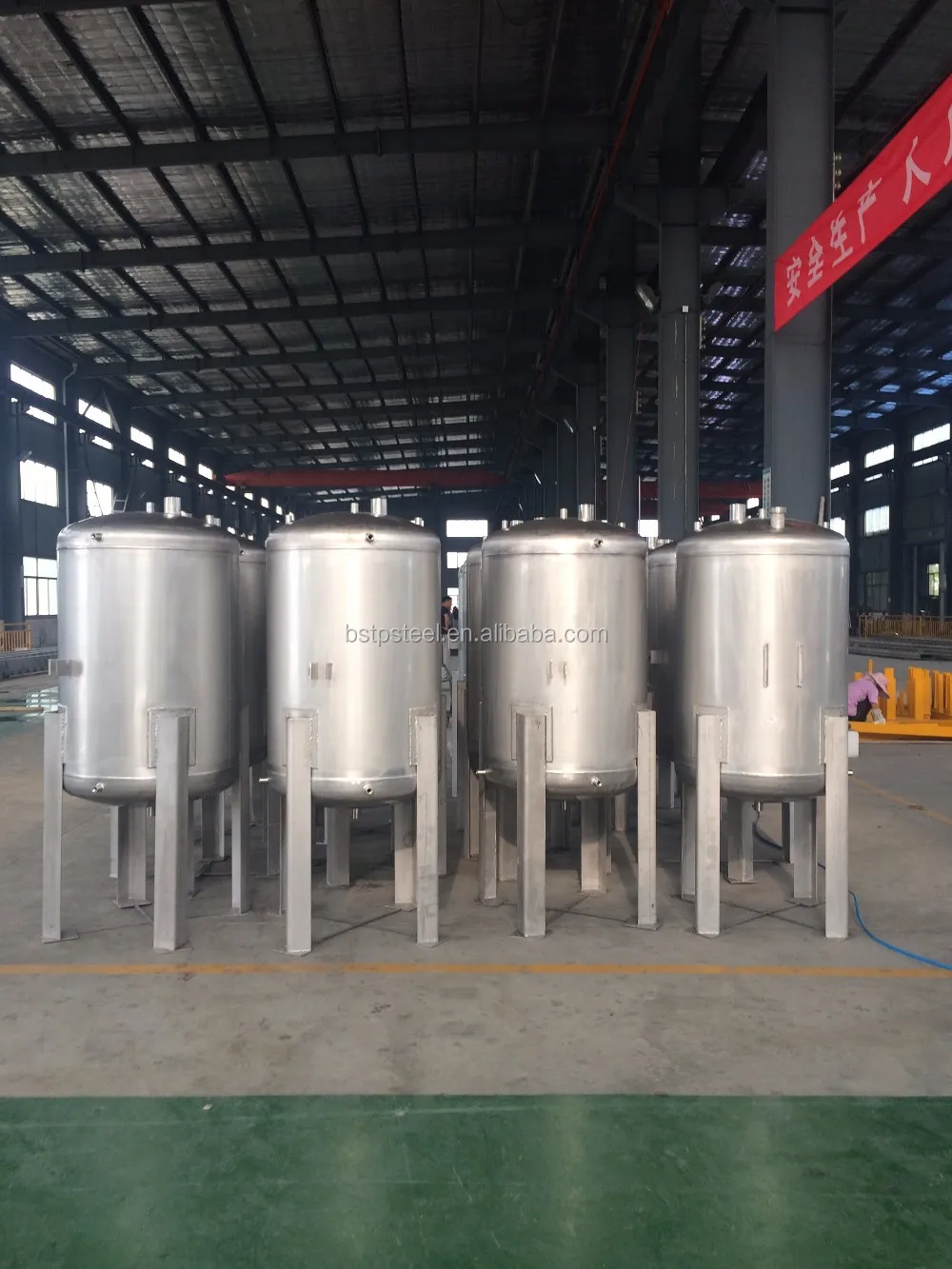

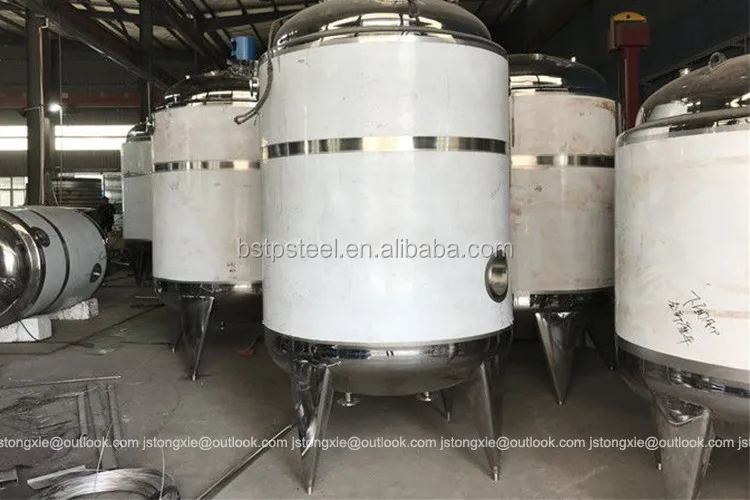

Stainless Steel Water Storage Tank


Application:
1.Used as disinfection tank,liquid composing tank,temporary storage tank and liquid blending tank etc.
2.Ideal in fields such as foods,dairy products,fruit juice beverages,pharmacy,chemical industry and biological engineering etc.

Specification:
1.  This Equipment is designed\processed\tested\checked in accordance with  "welded steel pressure vessel" standard.
2.  This equipment is a single layer storage tank(it also can be made of dual-layer or 3-layer),material of tank body is Stainless steel S30408,both internal & external of tank body made of 2B plate(for single layer storage tank), thickness of straight section δ=3.0mm,ellipsoidal top head, thicknessδ=3.0mm,Conical bottom,cone angle 120°,thickness δ=3.0mm;for example,for volume of 500L storage tank,diameter of tank body ¢=900mm,height of straight section h=750mm,total height of tank body is 1600mm;brushed treatment on welded seam.
3.  Configuration of  tank:DN100 Quick-open handhole,a level gauge,DN38 liquid inlet,DN38 wash hole(with washing ball),DN38 spare hole,DN38 liquid outlet etc. Quick-installed connector.
4.  This equipment is supported by adjustable triangular bracket,specification:¢108*3.0,material is S30408 stainless steel.

Technical Pharameter
Effective volume (L)
Dimension of tank (d × h ) (mm × mm)
Total height (mm)
DiameterOf inlet
& outlet
Heat preservation layer (for dual-layer tank)  (mm)
500
840 × 1000
2250
38














60
600
920 × 1000
2300
38
700
990 × 1000
2300
38
800
950 × 1220
2500
38
900
1010 × 1220
2500
38
1000
1060 × 1220
2550
51
1500
1160 × 1500
2850
51
2000
1340 × 1500
2900
51
3000
1410 × 2000
3400
51
4000
1620 × 2000
3450
51
5000
1810 × 2000
3500
51
6000
1980 × 2000
3550
51
7000
1930 × 2440
4000
51
8000
2060 × 2440
4000
51
9000
2180 × 2440
4050
51
10000
2300 × 2440
4050
51
12000
 2270 × 3000
4600
51
15000
2530 × 3000
4700
51
20000
2640 × 3660
5400
51
Packing & Delivery

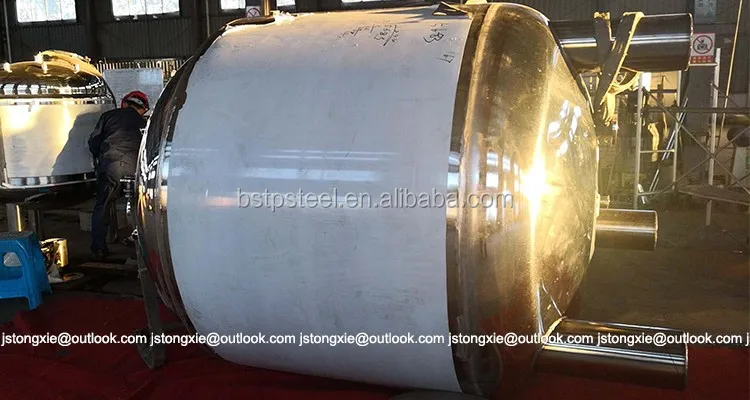

Iron Frame Packing- When Loaded in Whole Container, The tank will be covered by Pearl Wool, Lay down & fixed on a Iron frame, finally the whole tank will be fixed in the container.

Plywood Case Packing- When Delivered by LCL (Less Container Loading), the tank will be covered by Pearl Wool, then Packed in Plywood case.

Product Processing

Good Quality SS 304/304L/316/316L

Auto Welded Machinery

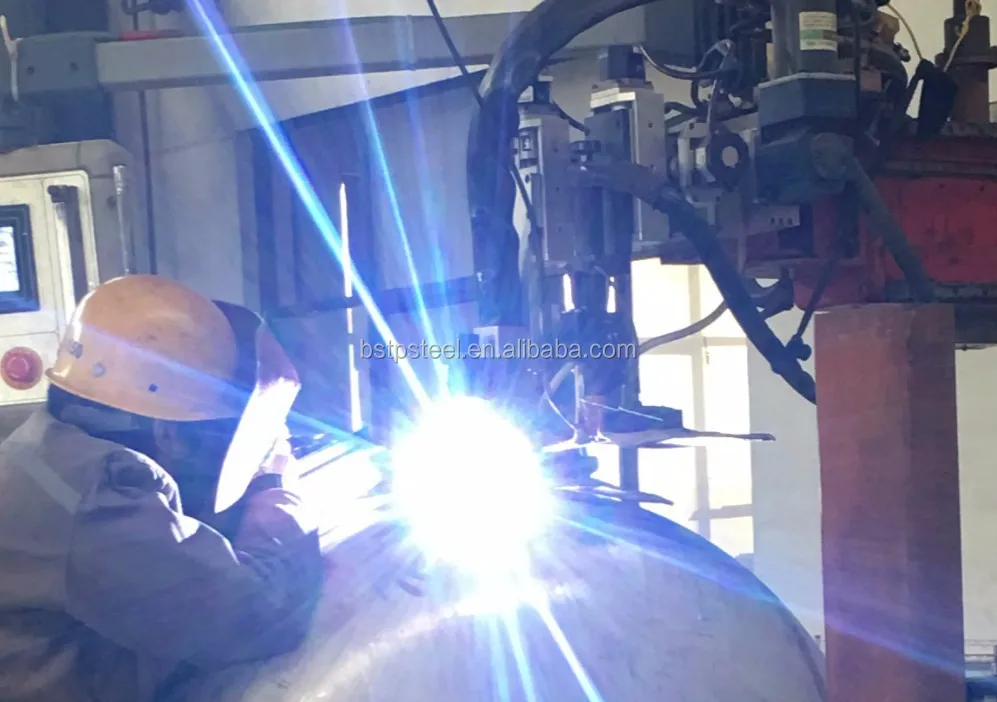

Skilled Welder Operation

Pressure Testing

High Presicion Measurement

Tank Cleaning

Product Equipments

Plasma Longitudinal Seam Welding

Automatic Pipe Welding Equipment

Plasma Ring Longitudinal Welding

Automatic Welding Equipment

Large Roller Coiling Machine

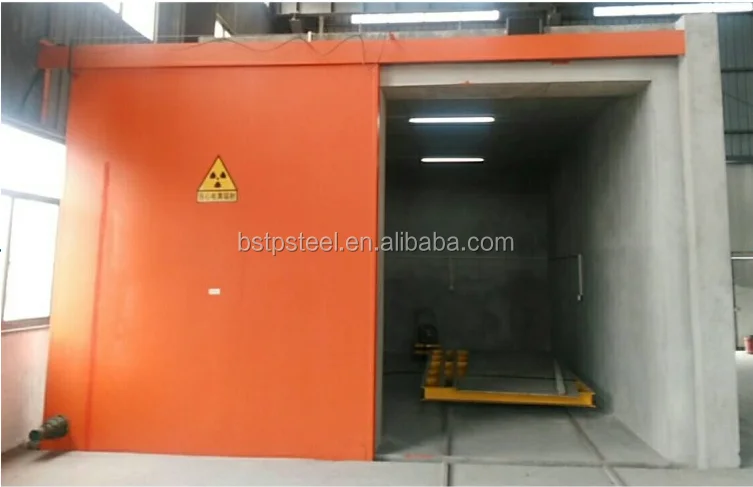

Nondestructive Testing Room

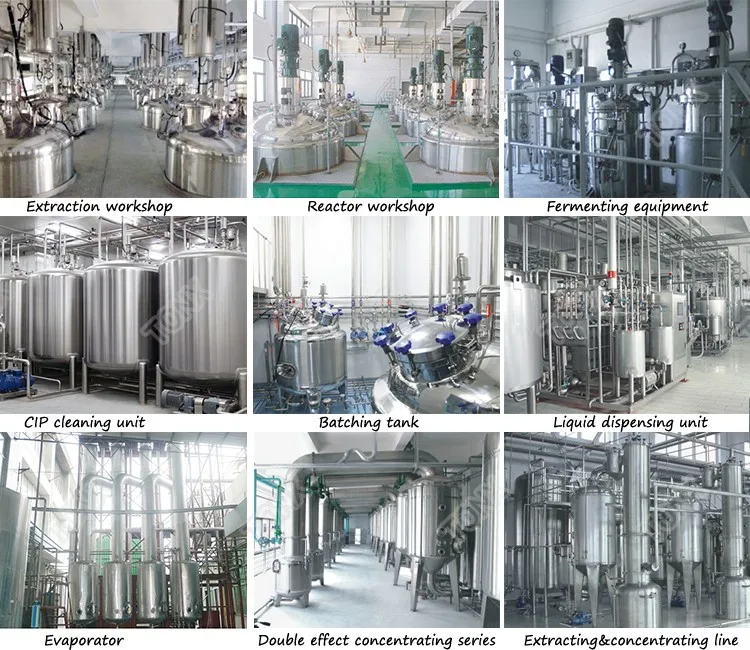

Product Cases
Our Company

Jiangsu Mechanical Equipment Co., Ltd

Wenzhou Bestop Steel Co., Ltd( International Business Dept)

· Mainly produce complete set of equipments for extraction, concentration, evaporation, crystallization, fermentation, filter, transportation, mixing, dissolution, Dispensing system , CIP on line cleaning system, national high-tech enterprises.
· The main production of extraction, concentration, evaporation, crystallization, fermentation, filtering, mixing, dissolution, CIP online cleaning and sanitary fluid valve pipe fittings and other complete sets of equipment, products are widely used in pharmaceutical, biological, chemical, food, dairy and other engineering fields.
