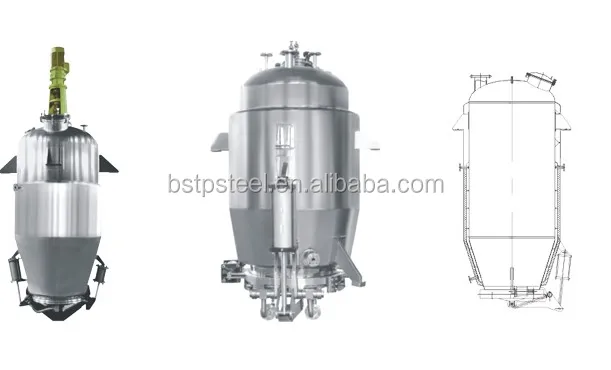

TQ-A series multifunctional extractor used for herb extracting

FOB Reference Price:Get Latest Price
$1,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TONX-Extraction02
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
TONX
Application:
Liquid
Type:
Extractor
Material:
Stainless Steel
Capacity:
100~5000L, Customized
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
WOODEN CASE/ WOODEN PALLET/ STEEL CRATE/ BARE PACKAGE OR AS CLIENT REQUIRED
Port
Shanghai / Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

The equipment is applicable for the multiple technology operation of normal pressure, micro pressure, water frying, warm soaking, thermal reflux, compulsory circulation, filtration, redolent oil extraction and organically solvent recycling in traditional Chinese medicine, food and chemical industry. The tank body is equipped with CIP cleaning automatic rotary spraying ball head, temperature measuring hole, explosion-proof view lamp, view mirror, rapid open feeding inlet etc., which can guarantee the convenient operation and is in accordance with GMP standard. The tank body inside the equipment is made of imported SUS304, and the jacket is made of completely sealed aluminum silicate blanket for temperature holding. The external tank body is stuck with SUS304 semi-luster thin steel sheet for surface decoration. The complete equipment supplied shall include: Defoamer, condenser, cooler, oil and water separator, filter and control desk for cylinder etc. Accessories.

Detailed Information

Rotary type residue discharging door

The tank cover can be automatically opened and closed. High temperature and high pressure extraction can be realized, and more than 3Bar can be achieved in the swivel type product. It provides more selection for extracting technology. It can also meet some special technological requirements. With good safety and reliability, it has sufficient safety guarantee functions and the has no leakage.

Rapid open safety discharging door

The tank cover can be automatically opened and closed. It adopts cylinder control and is provided with safety device to avoid accidental operation and provide high safety factor. It is suitable for use in small and medium-sized reside discharging vent.

Large-diameter residue discharging door

The tank cover can be automatically opened and closed. High temperature and high pressure extraction can be realized to provide more selection for extracting technology. With high safety factor, the residue discharging door is suitable for residue discharging of large-diameter upside-down taper type extracting tank.

Technology parameter
Our Company

                                  JIANGSU TONX MACHINERY EQUIPMENT CO., LTD

    Mainly produce complete set of equipments for extraction, concentration, evaporation, crystallization, fermentation, filter, transportation, mixing, dissolution, Dispensing system , CIP on line cleaning system, national high-tech enterprises.

    The main production of extraction, concentration, evaporation, crystallization, fermentation, filtering, mixing, dissolution, CIP online cleaning and sanitary fluid valve pipe fittings and other complete sets of equipment, products are widely used in pharmaceutical, biological, chemical, food, dairy and other engineering fields.

Certifications



                       CE


                  ISO9001



               Audited supplier
