Stainless Steel Herbal Extraction Concentration Equipment

FOB Reference Price:Get Latest Price
$4,411.00 - $11,764.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
JC092002
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Farms, Restaurant, Home Use, Retail
Place of Origin:
Jiangsu, China
Brand Name:
TONX
Application:
Pharmacy
Type:
Extractor
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year
Material:
Stainless Steel 304/ 316L
Supply Ability
Supply Ability:
2000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Option 1: When Delivered by LCL (Less Container Loading), the tank will be covered by Pearl Wool, then Packed in Plywood case.
Option 2: When Loaded in Whole Container, The tank will be covered by Pearl Wool, Lay down & fixed on a Iron frame, finally the whole tank will be fixed in the container.
Port
Shanghai Port/ Ningbo Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 50 To be negotiated
Product Description

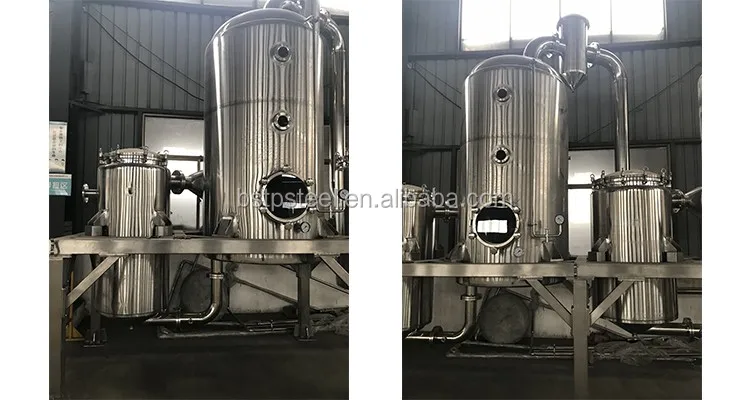

Stainless Steel Herbal Extraction Concentration Equipment

Equipment Description

The single-effect external circulation vacuum concentrator is composed of heater, evaporator, defoamer, condenser, cooler and liquid receiving tank. The parts that contact materials are all made of stainless steel. The equipment is applicable to evaporation and concentration of liquid materials in pharmacy, food, chemical industry and light industry etc. industries. The concentrating time is short and the evaporating s peed is high, which can better protect the heat sensitive materials from being damaged.

The series of single-effect evaporators have three forms

WZ single-effect external circulation vacuum concentrator is the ordinary type, which is used for evaporation of water solution.
WZS single-effect external circulation vacuum ointment collection concentrator is used for single-effect evaporation and thick ointment collection. After the normal single-effect evaporation, the valves connecting the spraying tube and circulating tube in the heating chamber and evaporating chamber will be closed. The liquid materials will fully enter the evaporating chamber and through the jacket heating in the evaporating chamber, normal pressure type or pressure relief type concentration will be carried out. The concentration specific gravity of materials will be increased to 1 .35-1.45.

Model and specification
WZ-500
WZ-1000
WZ-1500
WZ-2000
Evaporating capacity(kg/h)
500
1000
1500
2000
Recycled alcohol density(%)
80-85
Steam pressure(MPa)
0.03-0.09
Vacuum degree(MPa)
-0.05~-0.08
Evaporating room area(m3)
1
1.5
2
2.5
Liquid receiving volume(m3)
0.3
0.5
0.8
1
Steam cost(Kg/h)
520
1050
1550
2100
RWate cost(T/h)
7
10
15
20
Heating steam inlet(mm)
40
50
80
100
Cooling water inlet and outlet(mm)
40
50
65
80
Packing & Delivery

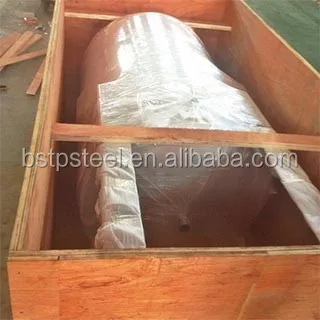

Plywood Case Packing- When Delivered by LCL (Less Container Loading), the tank will be covered by Pearl Wool, then Packed in Plywood case.

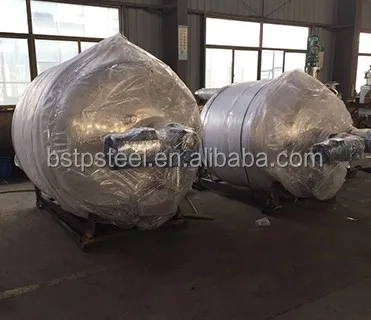

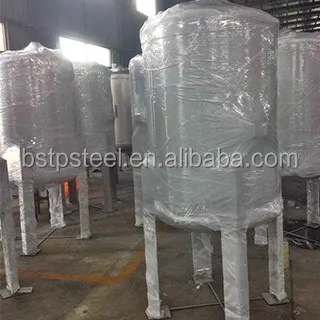

Iron Frame Packing- When Loaded in Whole Container, The tank will be covered by Pearl Wool, Lay down & fixed on a Iron frame, finally the whole tank will be fixed in the container.

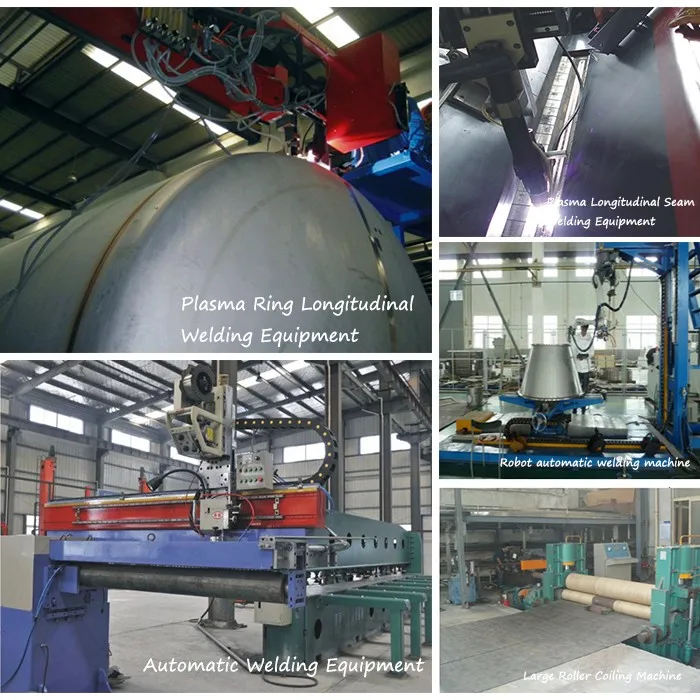

Product Processing

Good Quality SS 304/304L/316/316L

Auto Welded Machinery

Skilled Welder Operation

Pressure Testing

High Presicion Measurement

Tank Cleaning

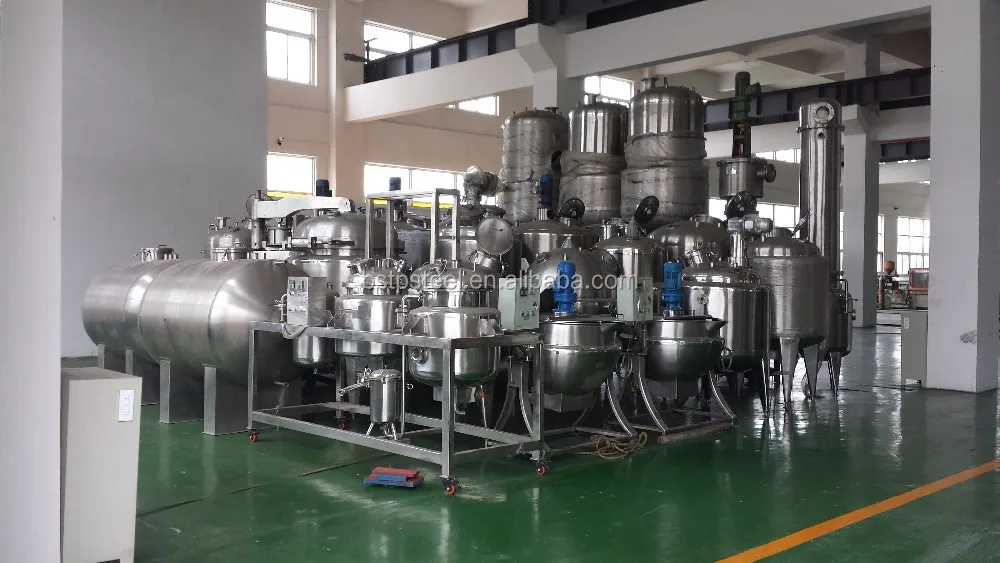

Product Equipments
Product Cases
Our Company

JIANGSU TONX MACHINERY EQUIPMENT CO., LTD

WENZHOU BESTOP STEEL CO., LTD( International Business Dept)

· Mainly produce complete set of equipments for extraction, concentration, evaporation, crystallization, fermentation, filter, transportation, mixing, dissolution, Dispensing system , CIP on line cleaning system, national high-tech enterprises.
· The main production of extraction, concentration, evaporation, crystallization, fermentation, filtering, mixing, dissolution, CIP online cleaning and sanitary fluid valve pipe fittings and other complete sets of equipment, products are widely used in pharmaceutical, biological, chemical, food, dairy and other engineering fields.
