ASTM A789 UNS S32750 Super Duplex 2507 Duplex Stainless Steel pipe and tube

FOB Reference Price:Get Latest Price
$1.20 - $3.00 / Kilograms | 500 Kilogram/Kilograms (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard:
ASTM, AISI, DIN, EN, GB, JIS, Other
Place of Origin:
Zhejiang, China
Brand Name:
Bestop
Model Number:
AST5001
Type:
Seamless
Steel Grade:
carbon steel
Application:
Fluid pipe,Structure Pipe,Oil pipe,,Boiler tube,Heat exchanger tube
Certification:
ISO
Welding Line Type:
Seamless
Thickness:
0.5-100mm
Outer Diameter:
6-813mm
FINISH:
Annealed & pickled, bright annealing, polished
Process:
Cold Drawn,Cold Rolled,Precision Cold Rolled
Supply Ability
Supply Ability:
20 Ton/Tons per Month
Packaging & Delivery
Packaging Details
Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Port
SHANGHAI PORT,NINGBO PORT OR TIANJIANG PORT
Lead Time :
Shipped in 30 days after payment
Product Description

1. Grade: S32750 ,S32760 , UNS S32304, UNS S32205, UNS S31803, UNS 32160,UNS S32101

2. Size: 1/2 "to 32" NB for seamless pipe

3. Standard: ASTM A789,ASTM A790, ASTM A213, A269, A312, A511, A789, A790, A376, EN 10216-5, EN 10297,DIN 17456, DIN 17458,JISG3459, JIS GS3463, GS3467, JIS G3448, GOST 9940, GOST 9941,GB/T 21833

4. Certification: ISO9001-2008, PED, AD2000 etc.

Product Name
ASTM A789 UNS S32750 Super Duplex 2507 Duplex Stainless Steel pipe and tube
Material

S31500,S31803,S32205,S32550,S31200,S31260,S32001,S32003,S32304,S39274
S32750,S32760,S32900,S32950,S39277,S32520,S32906,etc
Schedules
5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS
Size Range for tubing
OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)
Length
30 m(Max) or as your requirement
Process
Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube
Finish
Annealed & pickled, bright annealing, polished
Ends
Beveled or plain end, square cut, burr free ,Plastic Cap at Both end
Products Show

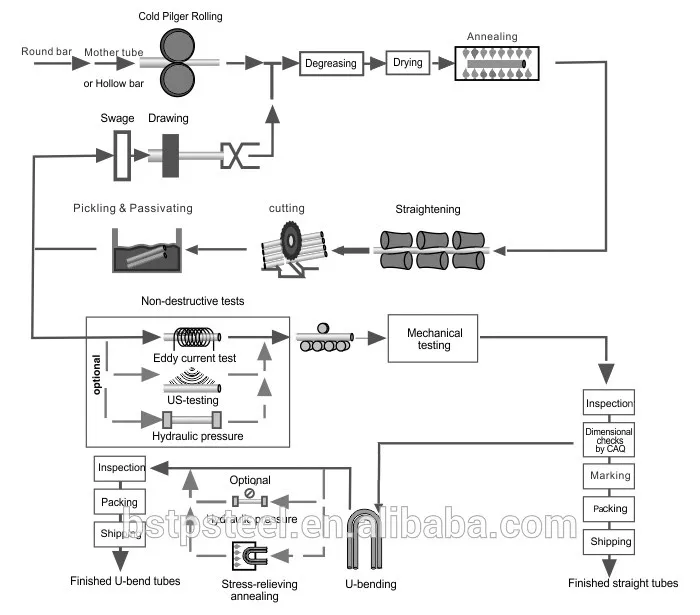

Production Process
Our Company

Wenzhou Bestop Steel Co., Ltd has earned a reputation for providing competitive prices, technical services and on time deliveries of your steel pipes, fittings, flange, valves and other supply needs.

Our Main Market is South and North America, Europe, Middle East, Southeast Asia, South Africa and so on. We look forward to receiving your attention and inquiry in the future.

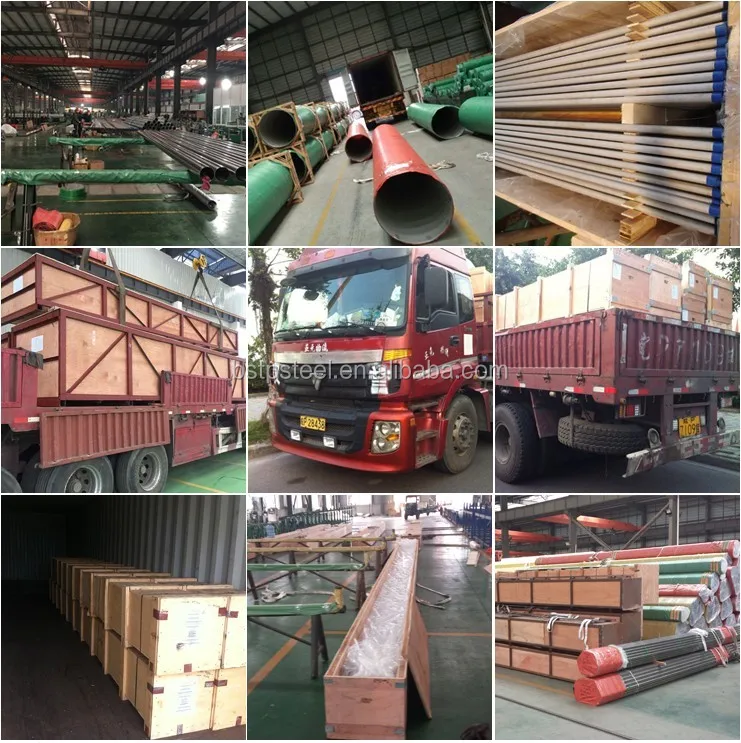

Packing & Delivery

Packing Details : Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Delivery Details : By sea with FCL/LCL contianer or in bulk ;by airfreight, by railway

Our Certifications

Bestop stainless steel

Our mill have passed certificate of ISO9001-2008, PED, AD2000, Manufacture license of special equipment (TS certificate A(2) class) by TUV BV, L'S, ABS.

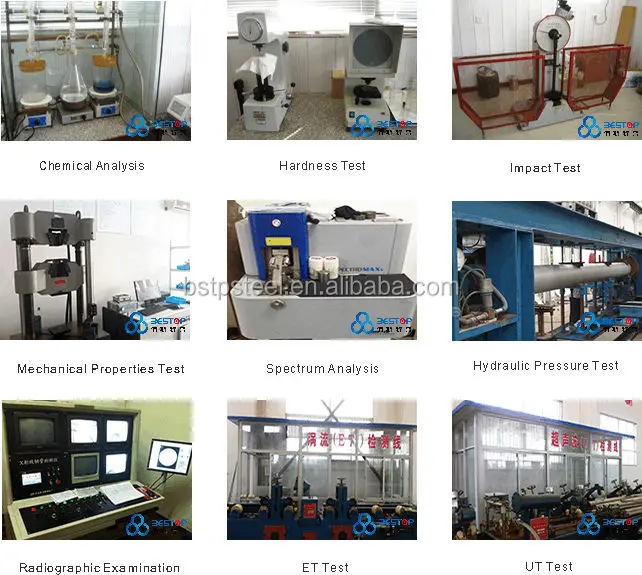

Inspection & Test
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
